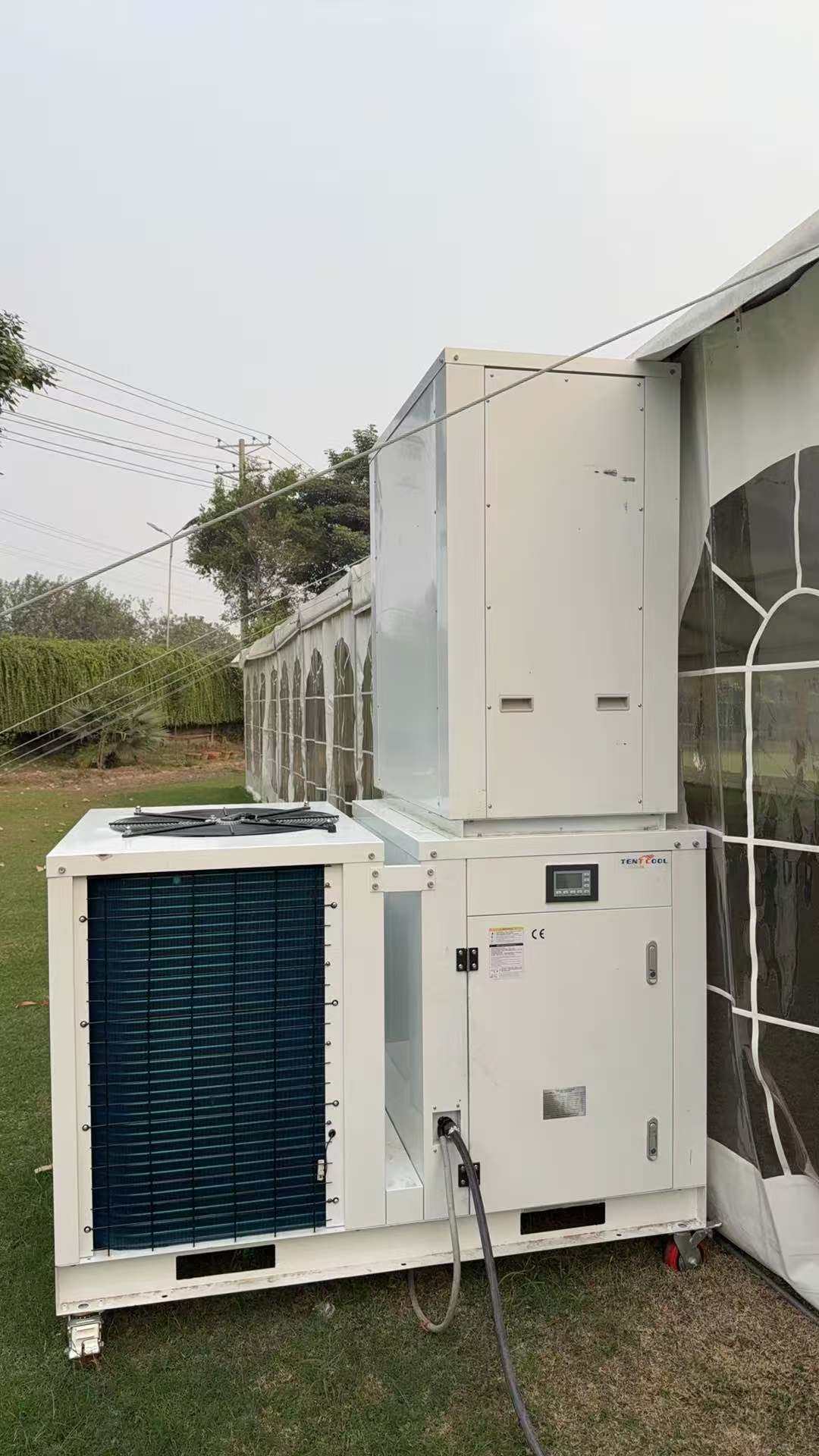

Enter the new 30HP 84KW portable Tent Air Conditioner. This is not a window unit. This is a skid‑mounted, three‑phase beast designed for the largest temporary structures.
The Math of Cooling a Big Top
A 2,000㎡ tent at 3m average height holds 6,000 cubic meters of air. Standard cooling rule: 300-400 BTU per square meter for event comfort. That’s 600,000 to 800,000 BTU total. At 84,000 BTU per hour (84KW * 3412 BTU/KW ≈ 287,000 BTU), one unit is undersized. But no one uses one unit.
Two 30HP 84KW Tent Air Conditioner units together deliver 574,000 BTU – enough for the 2,000㎡ tent in moderate heat. In extreme heat, add a third unit.
How to Distribute the Air
A single Event Tent Air Conditioner with one outlet will create a cold spot and hot corners. The 30HP unit comes with a six‑way duct splitter. Run insulated ducts to different rings of the tent. Place outlets at 2m height – cold air falls. You can also use ECU Environmental Control Unit style zoning, where each duct has a manual damper to balance airflow.
Real‑World Test
A festival in Texas used two 30HP 84KW Tent Air Conditioner units for a 1,800㎡ dining tent. Outside temperature was 98°F. Inside, they maintained 74°F at peak crowd. The key was duct placement: two ducts at the serving line, two at seating, one at the entrance, and one at the exit. No hot corners.
Power and Logistics
Each 30HP unit draws about 80 amps at 208V three‑phase. That’s a 100A breaker per unit. For two units, you need a 200A distribution panel or two separate generator feeds. The units weigh about 1,200 lbs each – forklift or roll‑back truck required. But once in place, they’re on locking casters.
Can a single 30HP 84KW Portable Tent Air Conditioner cool a 2,000㎡ circus tent? Barely, in mild heat. For reliable cooling, use two units. With proper ducting and zoning, you’ll keep the lions, the acrobats, and the audience comfortable. And that’s a three‑ring success.
